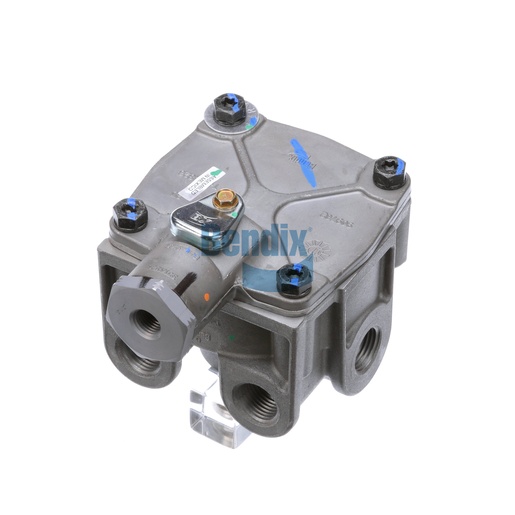

K063773
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential part of the air brake system, designed to ensure effective communication between the brake pedal and the braking mechanism. This valve is crafted with precision, providing reliable operation for commercial vehicles. Weighing 1.2 kg, it is lightweight yet robust enough to handle the demands of heavy-duty applications. The relay valve enhances braking performance by ensuring that air pressure is distributed accurately, thus improving safety and control on the road. When searching for genuine Bendix OEM parts, Source One Parts Center is the top choice for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Exhaust Adapter (with Silencer)
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.74 lb
