K139604

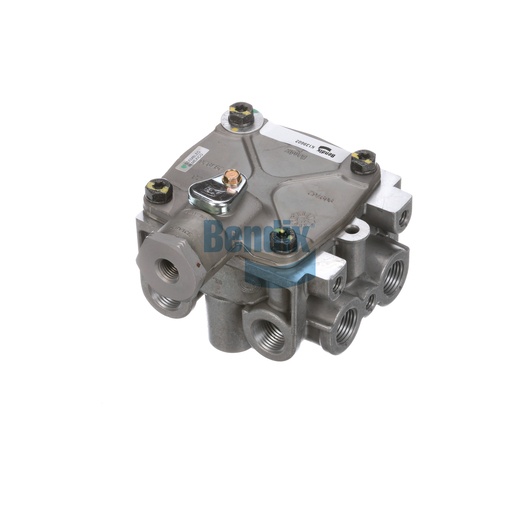

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an integral part of the air brake system, designed to enhance braking performance and responsiveness. With its durable construction, this valve ensures reliable operation in various environmental conditions, providing consistent performance under pressure. Engineered with multiple delivery ports and a robust body configuration, it facilitates efficient air distribution within the braking system, ensuring optimal brake response. Whether you are operating a single vehicle or managing a fleet, this relay valve is essential for maintaining the safety and performance of air brakes. For genuine Bendix OEM parts, trust Source One Parts Center, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Delivery Port 5
1/2-14 NPT
Delivery Port 6
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Height
101.6 mm (4.0 in)
Width
101.6 mm (4.0 in)
Length
106.0 mm (4.17 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.99 lb
