K158086

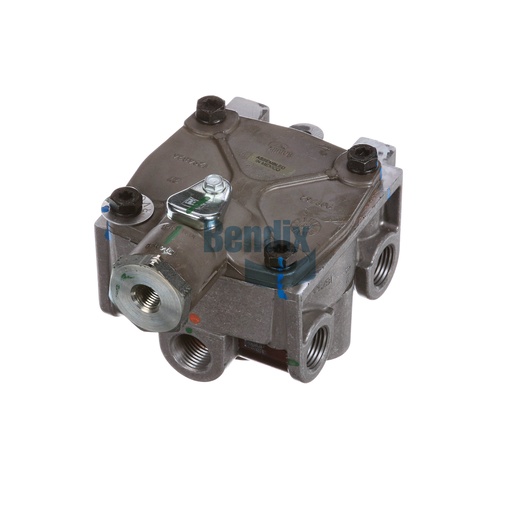

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component of your vehicle's air brake system, designed to enhance the efficiency and reliability of braking performance. This relay valve offers a robust construction that can withstand high-pressure environments, with a maximum operating temperature of 200°F. Featuring multiple delivery ports, it ensures optimal distribution of air pressure, significantly improving response times during braking. Its compact design allows for easy installation in tight spaces, making it a practical choice for commercial vehicles. With a crack pressure of 7.5 PSI, this relay valve is engineered to perform consistently under various conditions, ensuring safety and control on the road. For those who demand quality and reliability, Source One Parts Center is your best destination for genuine Bendix OEM parts, ensuring your braking system operates at its peak.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Height
156.0 mm (6.14 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Delivery Port 7
Cored Closed
Delivery Port 8
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV075
