OR103028

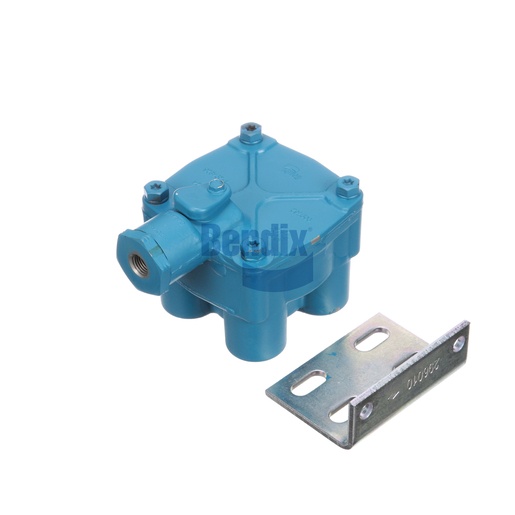

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve from Bendix is a critical component in the efficient operation of your vehicle's braking system. This valve is designed to regulate air flow, enhancing the overall performance and safety of commercial vehicles. With a focus on durability and reliability, this product is constructed to meet Bendix's high standards, ensuring long-lasting performance under demanding conditions. Easy to install, the coreless valve minimizes maintenance time and enhances your vehicle's braking efficiency. This valve is essential for maintaining optimal braking performance, contributing to the safety of both the driver and cargo. For genuine Bendix OEM parts, Source One Parts Center is your best choice, providing you with the components you need to keep your commercial vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
101.0 mm (3.98 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Control Port Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.57 lb
