DESCRIPTION

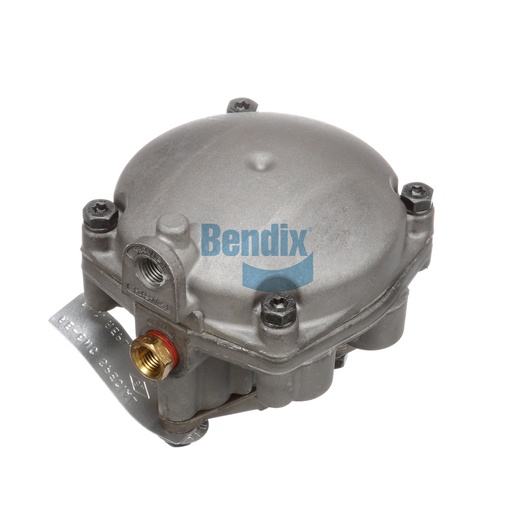

The Bendix Relay Emergency Valve is a critical safety component in the air brake system, designed to ensure that your vehicle can stop safely in emergency situations. This valve regulates the flow of air to the braking system, providing an immediate response when brake pressure is applied. Weighing 1.6 kg and manufactured in Mexico, it meets stringent quality standards for durability and reliability in heavy-duty applications. The functionality of this emergency valve is paramount for maintaining the safety and responsiveness of your braking system. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive high-quality components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS121 (Dolly System)
Country of Origin
Mexico
TMC Washer
RE020
Weight
3.42 lb
