065452

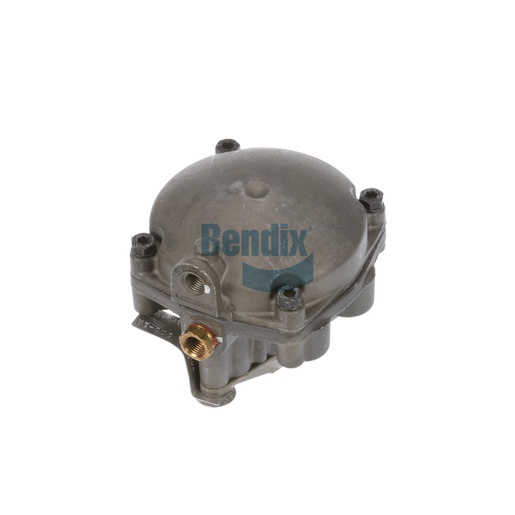

Relay Emergency Valve
Bendix

DISCONTINUED

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Relay Emergency Valve from Bendix is a state-of-the-art component designed to enhance the safety and functionality of your vehicle's air brake system. Weighing 1.6 kg (3.55 lb), this valve is engineered to provide reliable emergency brake applications, ensuring that your vehicle can stop safely during critical situations. Its robust construction and precision engineering guarantee long-lasting performance, making it suitable for various commercial vehicle applications. The valve features advanced technology that allows for quick response times, contributing to improved stopping power and control. By incorporating this essential part into your braking system, you not only enhance safety but also ensure compliance with regulatory standards. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, offering high-quality components designed specifically for the demands of commercial vehicles.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS121 (Dolly System)
TMC Washer
RE075
Country of Origin
United States, Mexico
Weight
3.55 lb
