101197N

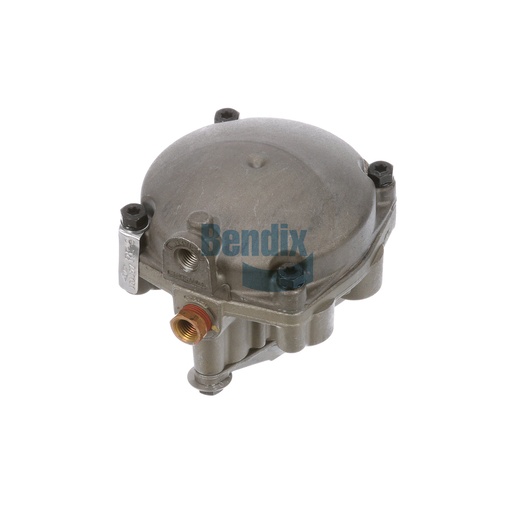

Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Emergency Valve is an essential safety component in your vehicle's air brake system, designed to manage pressure and ensure that brakes engage effectively during emergencies. This valve operates by controlling the flow of air to the brake chambers, providing a reliable fail-safe mechanism that enhances overall braking reliability. Built to withstand harsh operating conditions, this valve features a robust design that ensures longevity and consistent performance, making it ideal for heavy-duty applications. Its precise engineering guarantees that the emergency function activates promptly, providing drivers with peace of mind. For fleet managers and truck operators, investing in high-quality relay valves is crucial for maintaining safety on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive authentic components that meet the highest quality standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
159.3 mm (6.27 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-14 NPT (Nipple Mount)
Reservoir Port 1
3/4-14 NPT x 3/4-14 NPT (Pipe Nipple)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.09 lb
