$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

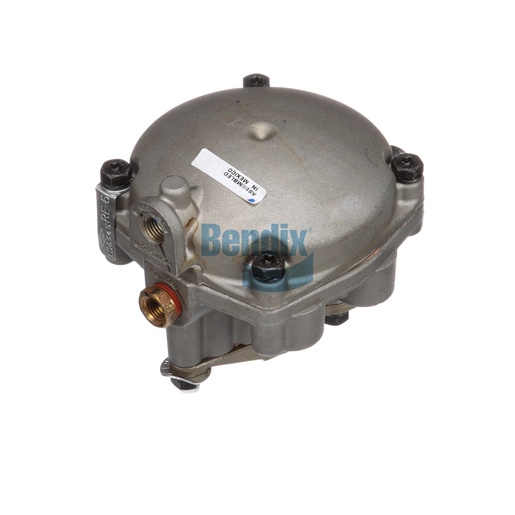

The Relay Emergency Valve from Bendix is an essential component in air brake systems, designed to enhance safety and reliability in commercial vehicles. This valve plays a crucial role in managing air pressure during emergency situations, ensuring that brakes engage effectively when needed. Manufactured in Mexico, it is built to withstand the rigors of heavy-duty applications, ensuring durability and consistent performance. With a compact design, it is easy to install, allowing for quick replacements and maintenance. Weighing only 3.7 lb, it is designed for optimal functionality without adding excess weight to the system. By integrating this emergency valve into your braking system, you ensure a higher level of safety and control. Trust Bendix for quality and performance, and rely on Source One Parts Center for all your genuine Bendix OEM parts, providing you the best solutions for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
159.3 mm (6.27 in)
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-14 NPT (Nipple Mount)
Reservoir Port 1
3/4-14 NPT x 3/4-14 NPT (Pipe Nipple)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Crack Pressure
4.0 PSI
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE040
Weight
3.7 lb
