281672

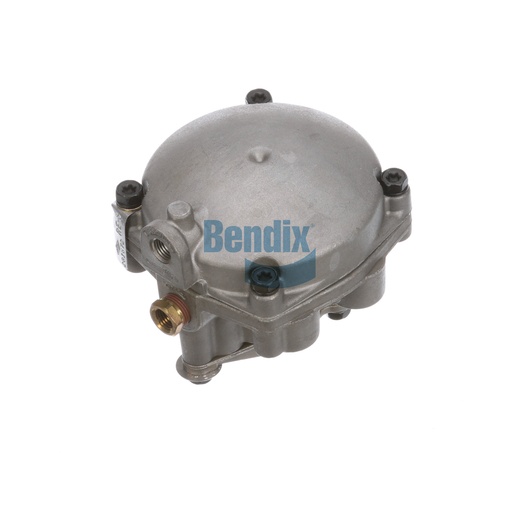

Relay Emergency Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay emergency valve is an essential safety component in the air brake system of commercial vehicles, designed to ensure prompt and reliable braking performance. This valve plays a crucial role in regulating air pressure, enabling the quick release of air for emergency situations. Built for durability, it operates efficiently under a wide range of temperatures, from -40°F to 200°F, making it suitable for diverse operating conditions. Its compact design allows for easy integration into existing brake systems, ensuring that maintenance is hassle-free. This relay valve's precision engineering contributes significantly to the overall safety and responsiveness of the vehicle's braking system. At Source One Parts Center, you’ll find genuine Bendix OEM parts that guarantee the reliability and performance you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.2 lb
