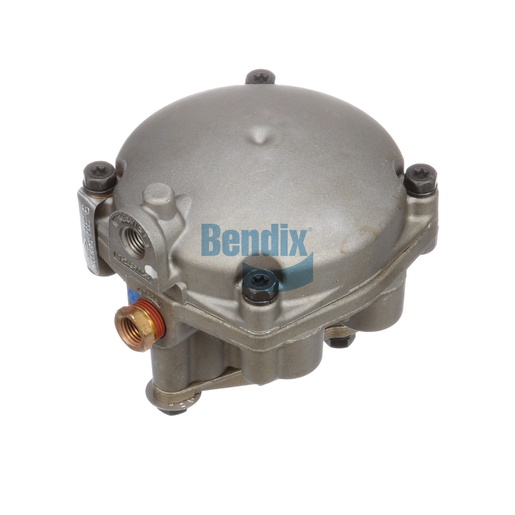

281860N
Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Emergency Valve from Bendix is a critical safety component within the air brake system of commercial vehicles, designed to ensure prompt and reliable emergency braking. This valve operates effectively under a wide range of temperatures, from -40°F to 200°F, making it suitable for diverse operating conditions. With a compact design and weighing just 1.4 kg (3.17 lb), it provides powerful performance without adding unnecessary weight to the vehicle. The relay valve is engineered to activate quickly in emergencies, allowing for swift air pressure release and facilitating immediate braking response. Its durable construction guarantees long-lasting performance, essential for maintaining safety on the road. When looking for Bendix OEM parts, Source One Parts Center is the best choice, providing customers with authentic components that ensure the highest standards of quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.17 lb
