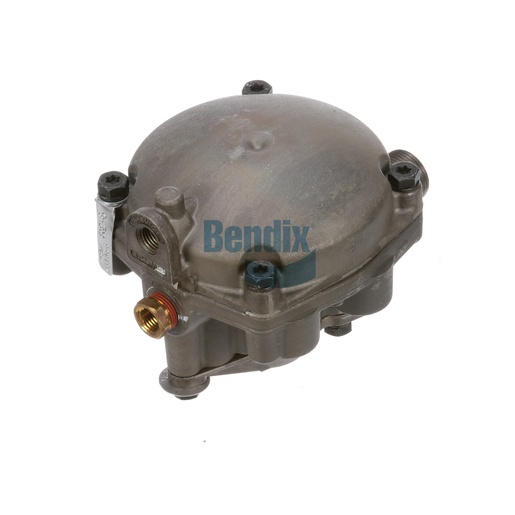

281866N
Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Emergency Valve is a key safety component in air brake systems, ensuring rapid response in emergency situations. Designed for durability and reliability, this valve operates effectively in a wide range of temperatures, making it suitable for demanding environments. The valve’s thoughtful design features multiple ports for easy installation and compatibility with various braking systems. Its compliance with regulatory standards ensures that your vehicle meets safety requirements, providing peace of mind on the road. For all your Bendix OEM parts, Source One Parts Center is your trusted supplier, delivering quality components that enhance your vehicle’s safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
159.3 mm (6.27 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-14 NPT (Nipple Mount)
Reservoir Port 1
3/4-14 NPT x 3/4-14 NPT (Pipe Nipple)
Reservoir Port 2
3/8-18 NPT (Plugged)
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.65 lb
