284103N

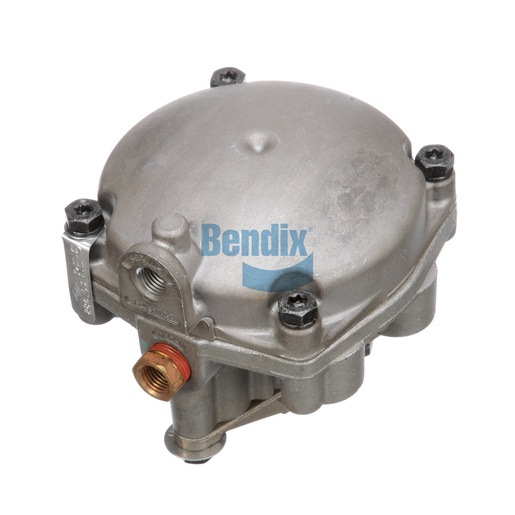

Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Emergency Valve serves as a critical safety component in air brake systems, providing quick and reliable activation of emergency braking. Weighing 1.5 kg (3.22 lb), this valve is built to endure the harsh conditions often faced by commercial vehicles. Originating from Mexico, it features a robust design that maintains effective operation in extreme temperatures from -40 °F to 200 °F. This valve is designed to provide immediate response during emergency situations, ensuring the safety of both the driver and the load. Its multiple delivery ports enhance versatility, allowing for seamless integration into various braking systems. By ensuring that your emergency braking systems engage promptly when needed, this valve significantly contributes to overall vehicle safety. For those looking for the best in Bendix OEM parts, Source One Parts Center is the ideal choice, guaranteeing quality and reliability you can count on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.22 lb
