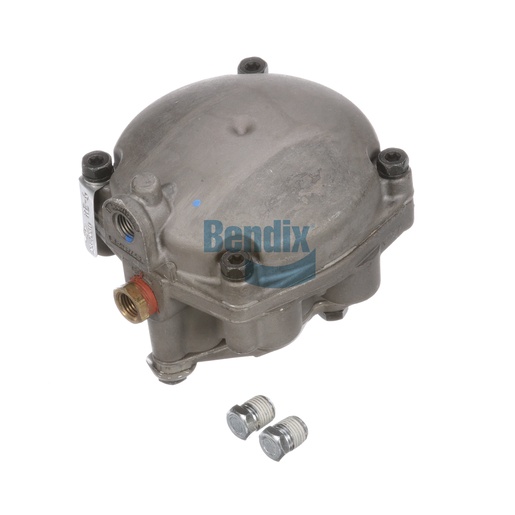

284280N
Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay emergency valve is crucial for ensuring the safety and reliability of your vehicle's braking system. Designed to manage emergency braking applications, it allows for quick response to sudden stops, enhancing overall vehicle safety. This valve features a robust construction, capable of functioning effectively in temperatures ranging from -40°F to 200°F. With precise port configurations, it ensures optimal airflow, facilitating efficient brake operations. Its thoughtful design allows for easy integration into existing air brake systems, making it a practical choice for fleet maintenance. By choosing to purchase from Source One Parts Center, you are guaranteed to receive authentic Bendix parts, which are essential for keeping your commercial vehicle safe and reliable.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Complete Emergency Release
110 PSI MAX
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Initial Emergency Application
60 - 70 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.26 lb
