OR284280

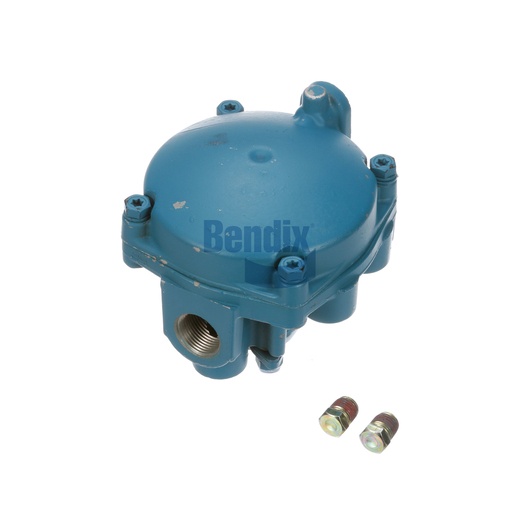

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Coreless Valve is a cutting-edge component designed to enhance the efficiency of your vehicle's air braking system. Its innovative design reduces pressure loss, ensuring that your brake system responds swiftly and effectively in critical situations. Built for durability, this valve withstands the rigors of commercial use, making it a reliable choice for fleet operators. The coreless feature simplifies installation and maintenance, allowing for easier access and reduced downtime. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, providing authentic quality and excellent customer support.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Delivery Port 4
1/4-18 NPT
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Complete Emergency Release
110 PSI MAX
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
128.8 mm (5.07 in)
Crack Pressure
2.0 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Reservoir Port 2
3/8-18 NPT (Plugged)
Initial Emergency Application
60 - 70 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS121 Compliant (Dolly System)
TMC Washer
RE020
Weight
3.37 lb
