065449

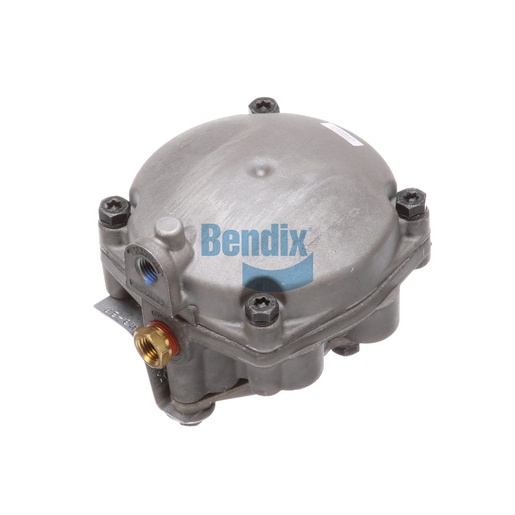

Relay Emergency Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Emergency Valve is an integral safety component in commercial vehicle braking systems, designed to ensure reliable operation during emergency situations. This valve functions by controlling the airflow in the braking system, allowing for quick and efficient engagement of the emergency brakes when needed. Its durable construction and precision engineering provide peace of mind, knowing that it will perform under pressure. This product is compatible with various Bendix systems, making it a versatile choice for fleet operators. By incorporating this relay valve into your braking system, you can enhance the safety and reliability of your vehicles. For the best selection of genuine Bendix OEM parts, trust Source One Parts Center, your go-to destination for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-037: Relay - Emergency, Air Brake
Emergency Supply Port
1/4-18 NPT
Service Port
1/4-18 NPT
Height
113.8 mm (4.48 in)
Width
124.0 mm (4.88 in)
Length
129.8 mm (5.11 in)
Crack Pressure
2.0 PSI
Initial Emergency Application
20 - 45 PSI
Maximum Operating Temperature
200 °F (93 °C)
Reservoir Port 1
3/4-14 NPT
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Reservoir Port 2
3/8-18 NPT
Complete Emergency Release
65 PSI MAX
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS121 (Dolly System)
Country of Origin
Mexico
TMC Washer
RE020
Weight
3.15 lb
