215057N

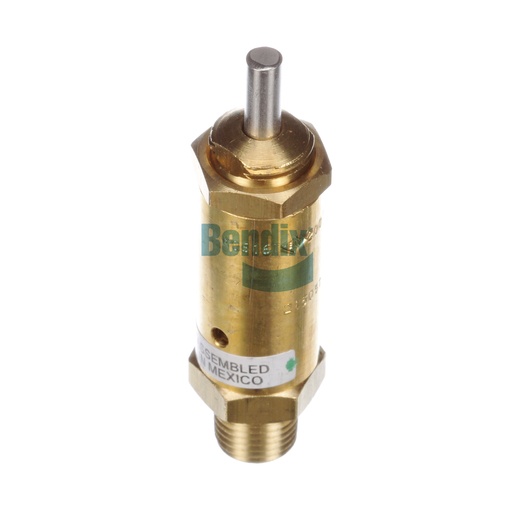

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is a critical component designed to enhance the safety and reliability of your air brake system. Weighing only 0.1 kg, this valve ensures that your braking system maintains optimal pressure while preventing potential malfunctions that could compromise safety. Its precision engineering allows for effective control of air pressure, making it essential for maintaining the performance of your vehicle's braking system. With a robust design that can withstand harsh conditions, this safety valve is perfect for heavy-duty applications where reliability is paramount. Investing in a quality safety valve is essential for protecting your vehicle and ensuring safe operation. For authentic Bendix OEM parts, Source One Parts Center is your trusted source for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Opening Pressure
200 ± 5 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
