$37.95
$45.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

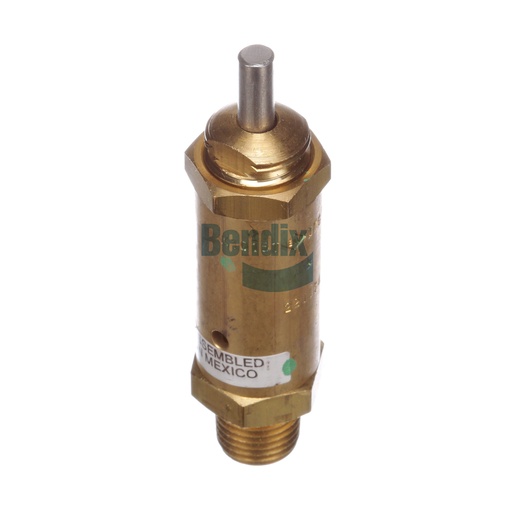

The Bendix safety valve is a crucial component of your vehicle's braking system, designed to enhance safety and performance. This valve helps regulate air pressure within the braking system, ensuring that your commercial vehicle's brakes respond effectively and reliably under various conditions. With its adjustable features and robust construction, this safety valve is engineered to withstand the demanding environments of heavy-duty applications. Weighing only 0.22 lbs, it offers easy installation and maintenance, making it an ideal choice for both fleet operators and individual vehicle owners. By incorporating this safety valve into your braking system, you can significantly improve safety and reliability on the road. For genuine Bendix OEM parts that ensure quality and performance, Source One Parts Center is your go-to destination, providing a wide range of trusted products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
175 ± 5 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.22 lb
