221786N

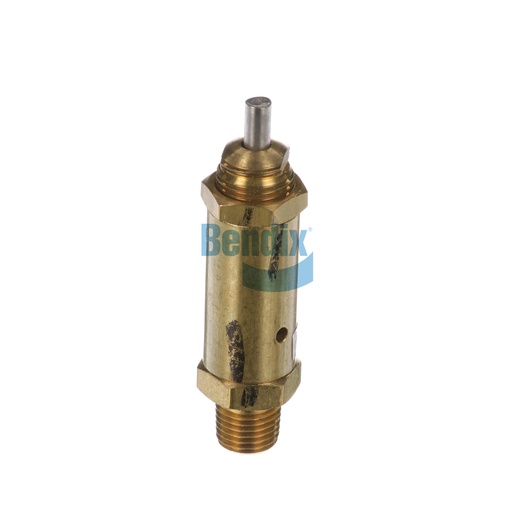

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is a crucial safety component designed to maintain optimal pressure levels in your vehicle's air brake system. This valve features an adjustable design, allowing for precise control over the closing pressure, which is set at 75% of the minimum opening pressure. Its compact size makes it easy to integrate into various braking setups, ensuring a secure fit and reliable operation. With high-quality construction, the safety valve operates effectively across a wide range of temperatures, from -40°F to 200°F. For those seeking dependable safety components for their braking systems, Source One Parts Center is the premier source for genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
102.5 ± 2.5 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.29 lb
