$39.95
$47.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

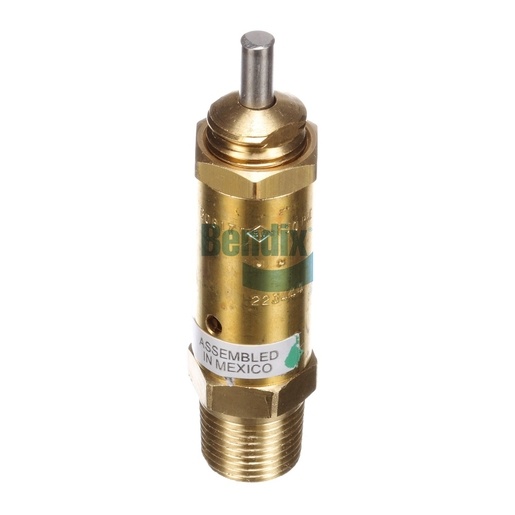

The Bendix Safety Valve is an essential component for ensuring the reliability and safety of your air brake system. This valve is designed to prevent excessive air pressure, providing critical protection for your braking system during operation. With a net weight of just 0.1 kg, it is lightweight yet built to withstand the demands of heavy-duty applications. The adjustable design allows for precise pressure regulation, ensuring optimal performance across various operating conditions. By utilizing high-quality materials and adhering to strict manufacturing standards, this safety valve helps enhance the overall reliability of your vehicle's braking system. At Source One Parts Center, we are committed to providing genuine Bendix OEM parts, ensuring you receive top-tier components that enhance the performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Opening Pressure
150 ± 5 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Port
3/8-18 NPT
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
