225674N

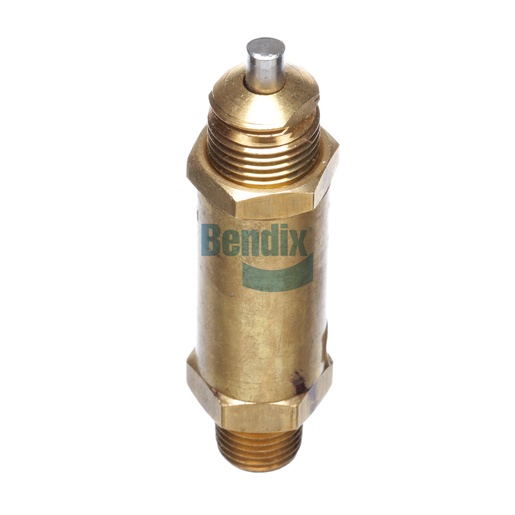

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is an essential safety component that helps protect your air brake system from overpressure situations. This valve is designed to automatically release excess air pressure, ensuring the safety and reliability of your braking system. With an adjustable opening pressure, this safety valve can be tailored to fit various braking applications, providing peace of mind for fleet operators and drivers alike. Constructed from durable materials, it guarantees long-lasting performance even in demanding environments. This valve's compact design allows for easy installation and maintenance, making it a smart choice for truck owners. When you need genuine Bendix OEM parts, trust Source One Parts Center as your premier source for reliable, high-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Opening Pressure
46.5 ± 1.5 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.22 lb
