229868N

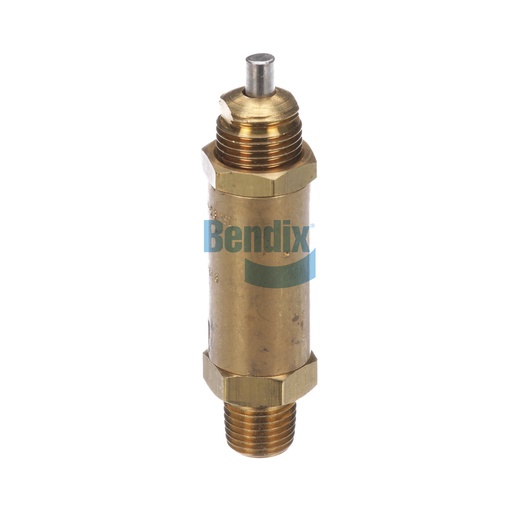

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve is a crucial component in Bendix air brake systems, designed to enhance the safety and reliability of commercial vehicles. With a compact design and a net weight of just 0.24 pounds, this valve plays a critical role in maintaining optimal air pressure within the braking system. It is adjustable and features a reliable closing pressure mechanism, ensuring that your vehicle's brakes operate safely under various conditions. The valve's construction is designed to withstand extreme temperatures, making it suitable for diverse environments. By integrating this safety valve into your braking system, you can significantly improve the safety and performance of your vehicle. For genuine Bendix OEM parts, including safety valves, Source One Parts Center is the best choice, ensuring quality and dependability in every purchase.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Opening Pressure
54.5 ± 1.5 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
