275362N

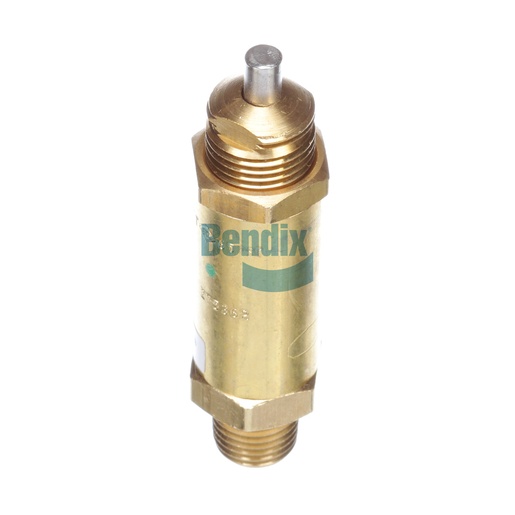

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix safety valve is a critical component in maintaining the integrity of your vehicle's air brake system. Designed to prevent excessive pressure build-up, this valve ensures that your braking system operates safely and effectively under all conditions. With an adjustable feature and durable construction, it is engineered to withstand the rigors of daily use while providing reliable performance. The valve's compact design allows for easy installation, making it a practical choice for any technician. By incorporating this safety valve into your braking system, you enhance the overall reliability and safety of your vehicle. Source One Parts Center is your ultimate destination for genuine Bendix OEM parts, ensuring you have the best components for your commercial fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Opening Pressure
67.5 ± 2.5 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
