275846N

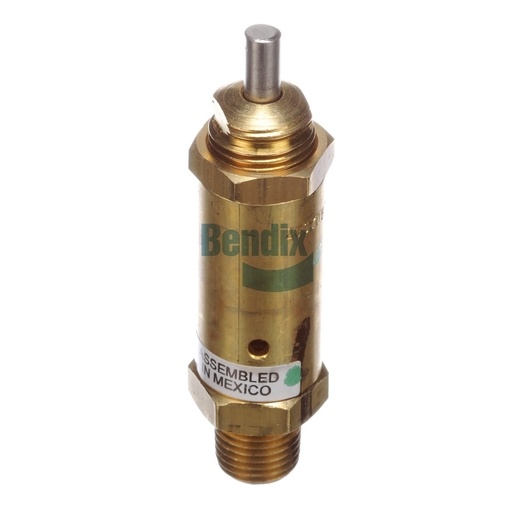

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve from Bendix is an essential component designed to enhance the safety and reliability of your vehicle's air brake system. With a precise opening pressure of 135 ± 5 PSI, this valve plays a critical role in maintaining optimal air pressure, preventing system overloads that could lead to brake failure. Its compact design and lightweight construction make it easy to install in various vehicle applications. The valve operates effectively in temperatures ranging from -40°F to 200°F, ensuring dependable performance in diverse environments. Featuring adjustable vent capabilities, it allows for fine-tuning to meet specific system requirements. This valve is designed to withstand the demands of heavy-duty use, contributing to overall vehicle safety. Source One Parts Center is the premier destination for sourcing genuine Bendix OEM parts, ensuring you receive high-quality, reliable components essential for your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
135 ± 5 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
