279758

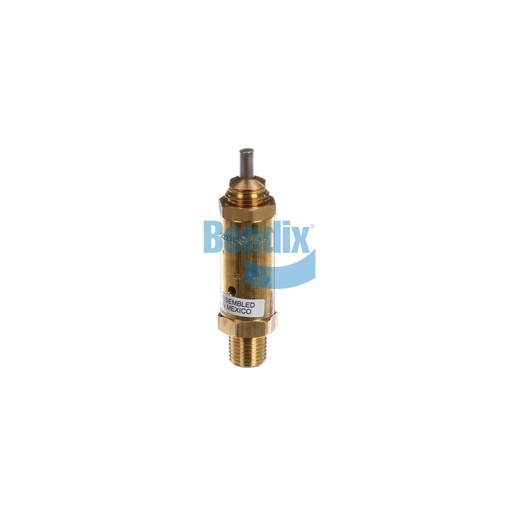

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve from Bendix is a crucial element in maintaining the integrity and safety of your air brake system. This valve is engineered to regulate air pressure effectively, ensuring that your braking system operates within safe limits. With a maximum operating temperature of 200°F and a reliable opening pressure, it offers peace of mind in critical situations. Its compact design allows for easy installation and maintenance, making it an essential addition to any commercial vehicle's air system. For those seeking quality and reliability, Source One Parts Center is the best place to purchase genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
117.5 ± 2.5 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.2 lb
