286247N

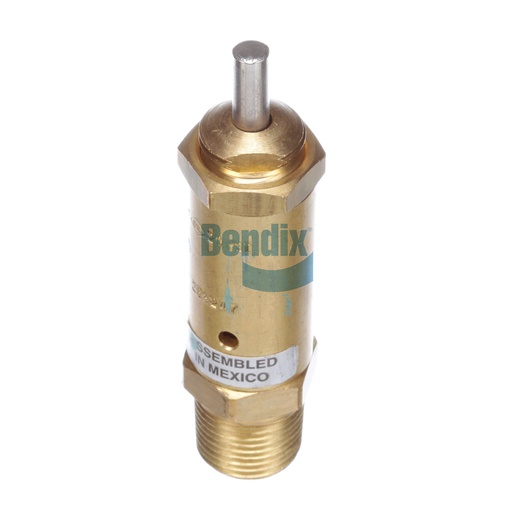

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is an essential safety component in your vehicle's air system, designed to protect against excessive pressure and ensure safe operation. This valve automatically releases pressure to prevent system overload, making it vital for the integrity of your air braking system. With a compact design and lightweight construction at just 0.1 kg, it is easy to install and maintain. The valve operates effectively under a wide range of temperatures, ensuring reliable performance in various conditions. When you choose Source One Parts Center, you are assured of obtaining genuine Bendix parts that meet the highest standards of quality and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Opening Pressure
20 ± 2 PSI
Maximum Operating Temperature
200 °F (93 °C)
Inlet Port
3/8-18 NPT
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.24 lb
