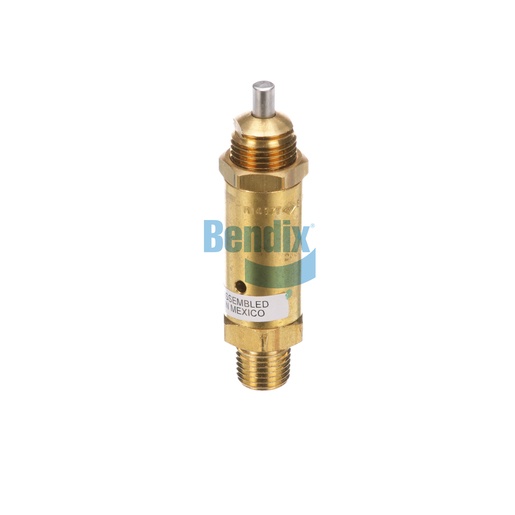

288367N
Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is an essential safety device for air brake systems, designed to prevent over-pressurization and ensure optimal performance. This valve features a compact design that allows for easy installation in various braking systems, enhancing the overall reliability of your vehicle. With adjustable opening pressure and robust construction, the safety valve effectively manages air pressure levels, providing peace of mind for drivers and fleet operators alike. Its durable materials ensure long-lasting performance, making it suitable for heavy-duty applications. For quality assurance and performance, trust the Bendix Safety Valve to protect your braking system. Source One Parts Center is the ultimate destination for genuine Bendix parts, ensuring you receive the best for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Opening Pressure
59.5 ± 1.5 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Height
82.6 mm (3.25 in)
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Thread Sealant
No Sealant
Adjustable
Yes
Vent
Ø .125 IN
Weight
0.22 lb
