108706N

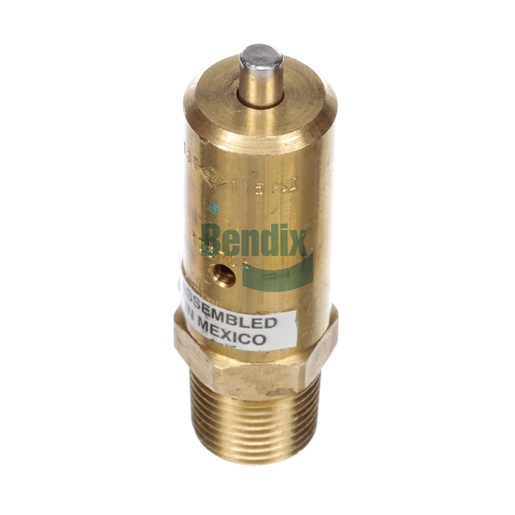

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve is designed to enhance the safety of your air brake system by preventing over-pressurization. Built with precision, this valve features a robust design that ensures reliable operation under various conditions, with an opening pressure of 175 PSI. It is engineered to maintain optimal pressure levels, contributing to the overall safety and reliability of the braking system. With a net weight of only 0.1 kg, it is lightweight yet durable, making installation straightforward. This valve is a crucial element for any commercial vehicle, ensuring safe operation on the road. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Opening Pressure
175 ± 8 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Port
3/8-18 NPT
Height
61.7 mm (2.43 in)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
No Sealant
Vent
Ø .125 IN
Weight
0.2 lb
