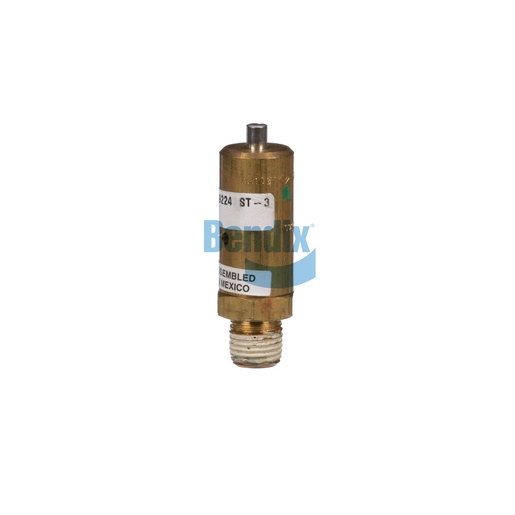

109224N
Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve from Bendix is designed to enhance the safety and reliability of air brake systems in commercial vehicles. This valve operates under a precision-engineered mechanism, ensuring that excess pressure is safely released, protecting your braking system from potential damage. Weighing only 0.1 kg, it is lightweight yet robust, making it easy to install. The valve’s compact design allows it to fit seamlessly within your existing brake system, while its durable construction ensures longevity and dependable performance. By investing in quality safety components like this valve, you enhance the overall safety of your vehicle. For genuine Bendix OEM parts, Source One Parts Center is your best choice, providing high-quality components that meet rigorous standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
150 ± 8 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
61.7 mm (2.43 in)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
Pre-Applied
Vent
Ø .125 IN
Weight
0.18 lb
