DESCRIPTION

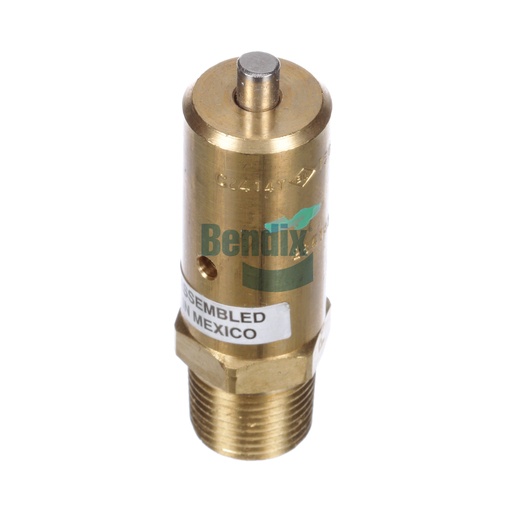

Bendix's Safety Valve is a critical component in ensuring the safety and reliability of your vehicle's air brake system. This valve is designed to prevent excessive pressure build-up, which can lead to brake failure and accidents. With a maximum operating temperature of 200°F and a minimum of -40°F, it operates effectively in a wide range of conditions. The lightweight design allows for easy installation without adding unnecessary weight. This safety valve is engineered for durability, providing peace of mind for operators and drivers by ensuring the integrity of the braking system. When sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal destination, offering high-quality components that enhance vehicle safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Opening Pressure
150 ± 8 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Port
3/8-18 NPT
Height
61.7 mm (2.43 in)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
No Sealant
Vent
Ø .125 IN
Weight
0.2 lb
