$25.95
$31.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

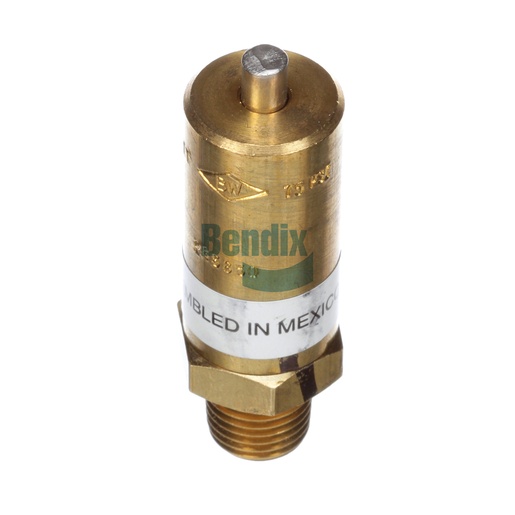

The Bendix Safety Valve is an essential component for maintaining the integrity and safety of your vehicle's air brake system. This valve is engineered to provide reliable pressure control, ensuring that your braking system functions optimally under varying conditions. With a compact size and lightweight design, weighing only 0.1 kg, it offers an efficient solution for managing air pressure. The safety valve is designed to open and close at specific pressure settings, preventing over-pressurization and enhancing the overall safety of your vehicle. By integrating this valve into your braking system, you can be assured of improved performance and reduced risk of brake failure. Trust in genuine Bendix components to maintain the highest safety standards. Source One Parts Center is your trusted partner for genuine Bendix OEM parts, providing quality solutions for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
61.7 mm (2.43 in)
Opening Pressure
75 ± 8 PSI
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
No Sealant
Vent
Ø .125 IN
Weight
0.18 lb
