288051N

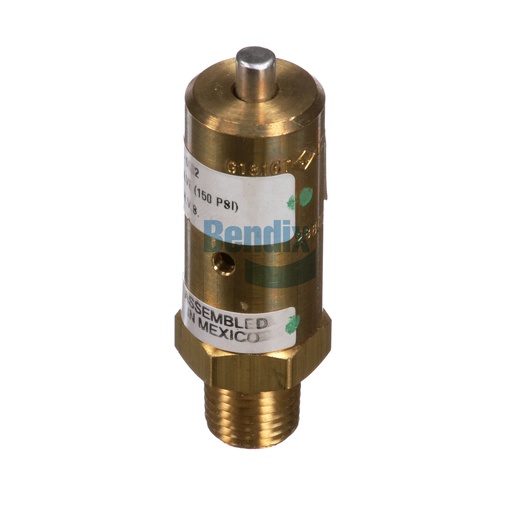

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve from Bendix is a critical component that plays a significant role in maintaining the integrity and safety of your vehicle's air brake system. Designed to operate under high pressure, this valve ensures that your braking system remains functional by relieving excess pressure and preventing potential system failures. Weighing only 0.1 kg, it features a compact design that allows for straightforward installation and maintenance. With its robust build quality, this safety valve is engineered to withstand the rigors of commercial use, ensuring reliability and peace of mind while on the road. For the best in genuine Bendix OEM parts, including the Safety Valve, look no further than Source One Parts Center, your trusted partner in commercial truck parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
150 ± 8 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
61.7 mm (2.43 in)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
No Sealant
Vent
Ø .125 IN
Weight
0.18 lb
