FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

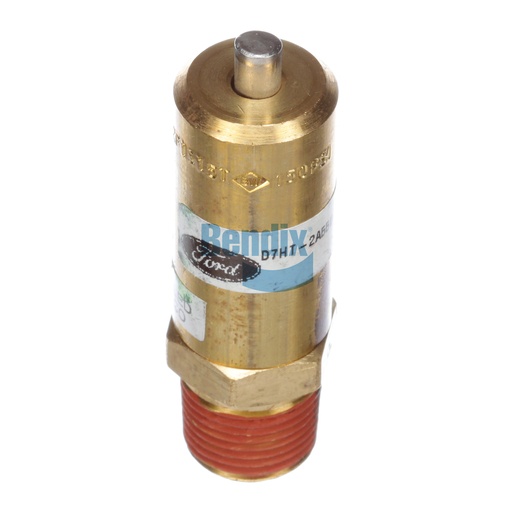

The Bendix Safety Valve is a critical component designed to enhance the safety and reliability of your commercial truck's braking system. This valve is engineered to maintain optimal pressure levels, ensuring that your air brake system operates efficiently and safely under various conditions. With a robust construction that withstands extreme temperatures ranging from -40 °F to 200 °F, this valve is built to last, providing peace of mind during your long hauls. The valve features a closing pressure set at 75% of the minimum opening pressure, ensuring that it reacts swiftly to any pressure fluctuations, preventing potential brake failures. Its compact dimensions (0.75 in x 2.43 in) and lightweight design (0.2 lb) make it easy to install without adding unnecessary bulk to your system. For those seeking genuine Bendix OEM parts, Source One Parts Center is your premier choice, offering authentic products that guarantee the performance and safety of your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Opening Pressure
150 ± 8 PSI
Length
19.1 mm (0.75 in)
Width
19.1 mm (0.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Inlet Port
3/8-18 NPT
Height
61.7 mm (2.43 in)
Closing Pressure
75% of the Minimum Opening Pressure
Harmonized System (HS) Code
848140
Country of Origin
Mexico
Adjustable
No
Thread Sealant
Pre-Applied
Vent
Ø .125 IN
Weight
0.2 lb
