800170

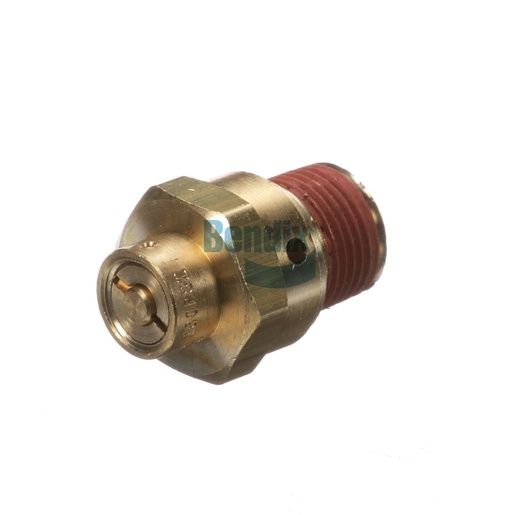

Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is a critical component in ensuring the safety and effectiveness of your vehicle's air brake system. This valve features a compact design, weighing only 0.15 lb, making it easy to install without sacrificing performance. Its adjustable opening pressure of 150 ± 10 PSI ensures reliable operation, while its robust construction allows it to withstand harsh conditions, with a maximum operating temperature of 250 °F. The valve's high-quality materials contribute to its longevity and dependability, making it an essential part of your safety system. With its application-focused design, it enhances the overall performance of your braking system. For the best selection of genuine Bendix OEM parts, choose Source One Parts Center, where quality and customer service are priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Opening Pressure
150 ± 10 PSI
Height
22.2 mm (0.88 in)
Width
22.2 mm (0.88 in)
Maximum Operating Temperature
250 °F (121 °C)
Inlet Port
3/8-18 NPT
Length
34.3 mm (1.35 in)
Closing Pressure
50% of the Nominal Opening Pressure
Hex Size
7/8 IN
Harmonized System (HS) Code
848140
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .125 IN
Weight
0.15 lb
