$52.95
$63.54
FINAL SALE. No returns or exchanges.

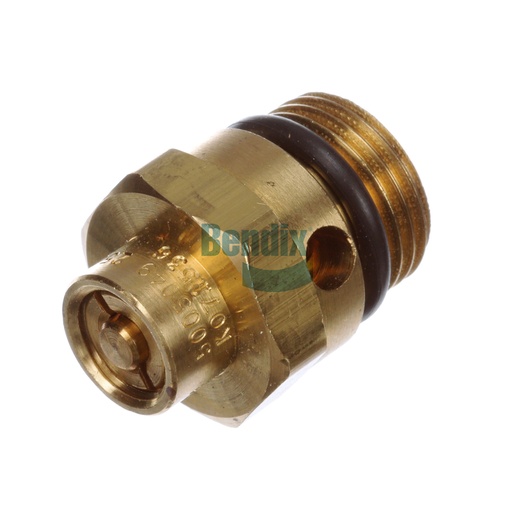

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix safety valve is a crucial component designed to enhance the safety of air brake systems in commercial vehicles. This valve is engineered to prevent excessive pressure in the system, ensuring that your brakes operate effectively and safely. Compact and lightweight, it features a straightforward design that allows for easy installation and maintenance. Its durable construction is built to withstand a wide range of temperatures, making it suitable for various operating conditions. Weighing just 0.1 kg, this safety valve is an essential part of your braking system. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, providing the best solutions for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
2
Height
22.2 mm (0.88 in)
Width
22.2 mm (0.88 in)
Maximum Operating Temperature
250 °F (121 °C)
Opening Pressure
250 ± 10 PSI
Inlet Port
3/4-16 UNF-2A
Length
31.8 mm (1.25 in)
Closing Pressure
50% of the Nominal Opening Pressure
Hex Size
7/8 IN
Harmonized System (HS) Code
848140
Adjustable
No
Thread Sealant
No Sealant
Country of Origin
United States
Vent
Ø .281 IN
Weight
0.15 lb
