$46.95
$56.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

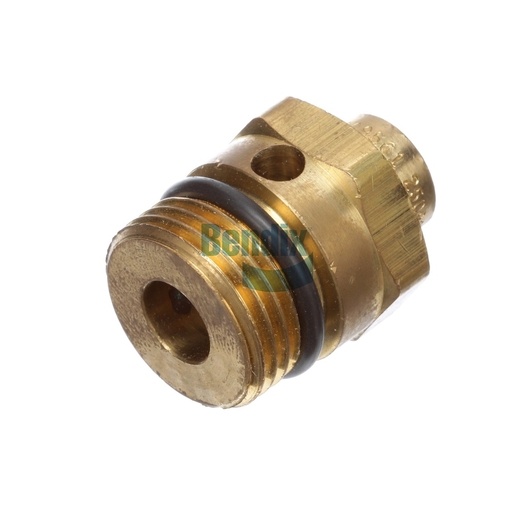

The Bendix Safety Valve is a critical component designed to ensure the safety and efficiency of your air brake system. This valve is engineered to automatically release pressure in the event of an overpressure situation, protecting your braking system from potential damage. With an adjustable opening pressure of 250 ± 10 PSI, it provides reliable performance under various conditions. The valve's compact design features two vents, allowing for effective pressure management while maintaining a lightweight profile. Operating effectively in temperatures ranging from -40°F to 250°F, this safety valve is built to withstand the demands of heavy-duty applications. Trust Source One Parts Center for genuine Bendix OEM parts that guarantee safety and reliability in your vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Hex Size
15/16 IN
Number of Vents
2
Height
23.8 mm (0.94 in)
Width
23.8 mm (0.94 in)
Maximum Operating Temperature
250 °F (121 °C)
Opening Pressure
250 ± 10 PSI
Length
31.8 mm (1.25 in)
Closing Pressure
50% of the Nominal Opening Pressure
Inlet Port
7/8-14 UNF-2A
Harmonized System (HS) Code
848140
Adjustable
No
Thread Sealant
No Sealant
Country of Origin
United States
Vent
Ø .281 IN
Weight
0.2 lb
