$30.95
$37.14
FINAL SALE. No returns or exchanges.

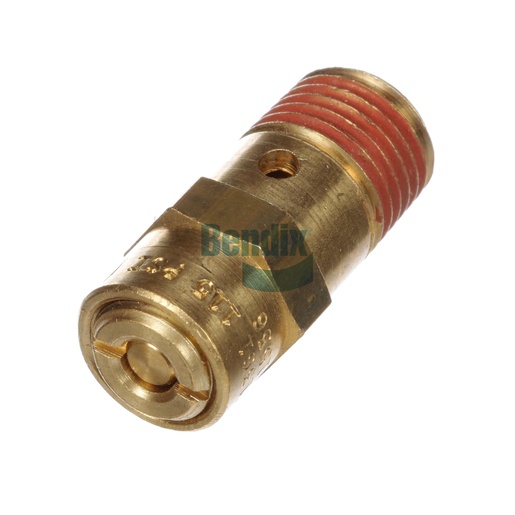

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Safety Valve is an essential component for ensuring the reliability and safety of your air brake system. This valve is designed to prevent air from escaping when the system is not under pressure, maintaining the integrity of the braking system and providing peace of mind for drivers. With an adjustable closing pressure that operates effectively within a range of 115 ± 10 PSI, this safety valve is engineered for precise control, allowing for optimal braking performance under various conditions. Its compact size and lightweight design make installation straightforward, while the pre-applied thread sealant ensures a secure fit without leaks. By choosing genuine Bendix parts like this safety valve, you ensure your vehicle's braking system operates with the utmost reliability. Source One Parts Center is the go-to place for sourcing authentic Bendix products.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Opening Pressure
115 ± 10 PSI
Height
14.3 mm (0.56 in)
Width
14.3 mm (0.56 in)
Maximum Operating Temperature
250 °F (121 °C)
Length
34.3 mm (1.35 in)
Closing Pressure
50% of the Nominal Opening Pressure
Harmonized System (HS) Code
848140
Hex Size
9/16 IN
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .125 IN
Weight
0.09 lb
