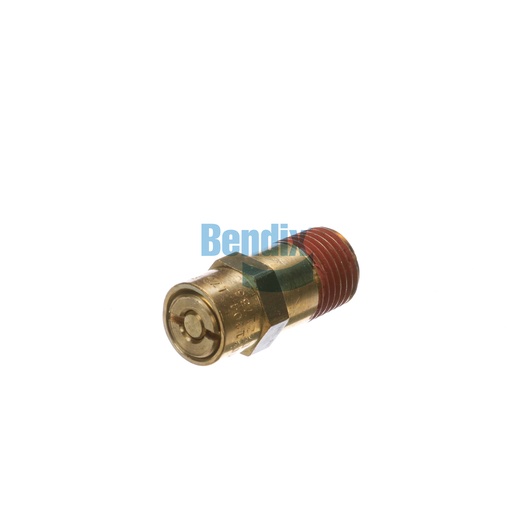

K021914
Safety Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Safety Valve is an indispensable component in the air brake system of commercial vehicles, designed to enhance safety and functionality. This valve features a robust construction that ensures reliable performance under various conditions, with an opening pressure of 175 ± 10 PSI and a closing pressure that guarantees optimal air management. The valve's compact design allows for easy installation and maintenance, making it a preferred choice for fleet operators looking to enhance the safety of their vehicles. This part is engineered to function effectively even in extreme temperatures, ensuring that your braking system remains operational when it matters most. By investing in genuine Bendix OEM parts, you ensure the reliability and safety of your vehicle's air brake system, and Source One Parts Center is your go-to source for these essential components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-073: Safety Valve
Number of Vents
1
Inlet Port
1/4-18 NPT
Height
14.3 mm (0.56 in)
Width
14.3 mm (0.56 in)
Opening Pressure
175 ± 10 PSI
Maximum Operating Temperature
250 °F (121 °C)
Length
34.3 mm (1.35 in)
Closing Pressure
50% of the Nominal Opening Pressure
Harmonized System (HS) Code
848140
Hex Size
9/16 IN
Adjustable
No
Thread Sealant
Pre-Applied
Country of Origin
United States
Vent
Ø .125 IN
Weight
0.11 lb
