$114.95
$137.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

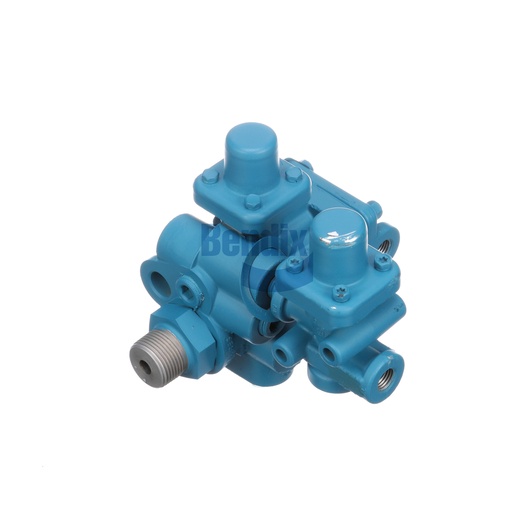

The Bendix Coreless Valve is designed to optimize the functionality of air brake systems, ensuring efficient air management and preventing system failures. With a compact design and weighing just 1.8 kg, this valve is easy to install and maintain, making it essential for commercial vehicles operating under demanding conditions. Its adjustable features allow for precise control over air pressure, contributing to improved braking performance and safety. For reliable and high-quality Bendix OEM parts, Source One Parts Center is the leading destination, providing components that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Service Reservoir Port 1
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT(with Pressure Protection Valve)
Height
140.7 mm (5.54 in)
Width
141.7 mm (5.58 in)
Length
154.9 mm (6.1 in)
Maximum Operating Temperature
200 °F (93 °C)
Spring Brake Reservoir Supply Port
3/4-14 NPT (with Check Valve)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
60 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Service Brake Priority
Anti-Compounding
Yes
Weight
3.88 lb
