OR101622

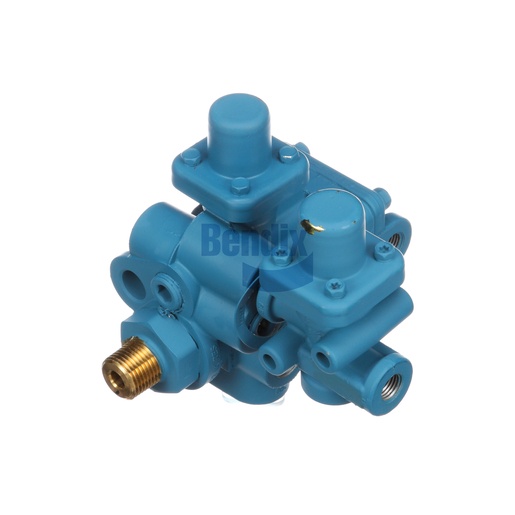

CORELESS VALVE
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Coreless Valve from Bendix is a vital component for the proper functioning of your vehicle's air brake system. This durable valve is designed to optimize air flow and pressure, ensuring that your braking system operates efficiently and effectively. Its robust construction is tailored for heavy-duty applications, providing reliability and safety under various driving conditions. The valve's advanced design features enhance performance and responsiveness, making it an essential part of your vehicle's braking system. Easy to install, it fits seamlessly with existing systems, making maintenance straightforward. For sourcing genuine Bendix OEM parts, Source One Parts Center is your top destination, offering authentic products that comply with the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Spring Brake Reservoir Supply Port
1/2-14 NPT (with Check Valve)
Service Reservoir Port 1
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT(with Pressure Protection Valve)
Height
140.7 mm (5.54 in)
Width
141.7 mm (5.58 in)
Length
154.9 mm (6.1 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Closing Pressure
60 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Service Brake Priority
Anti-Compounding
Yes
Weight
3.86 lb
