OR102761

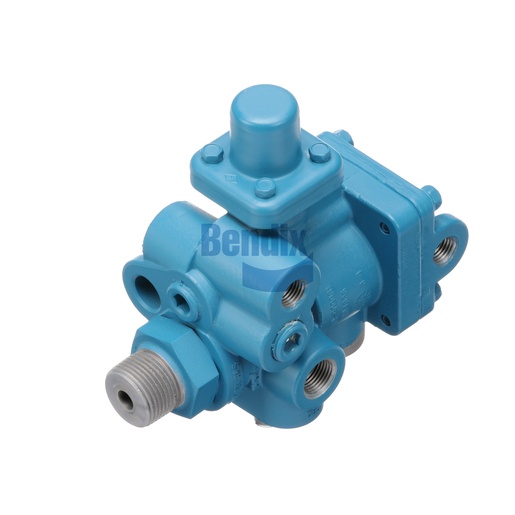

CORELESS VALVE
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix coreless valve is a critical component in air brake systems, specifically designed for tractor protection applications. This valve enhances the efficiency of the braking system, allowing for quick and reliable operation under various conditions. With a lightweight design and durable construction, it is built to meet the rigorous demands of commercial trucking. For those in search of reliable and high-quality components, Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring the highest standards of performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-111: Hand Valve - Trailer Spring Brake Release (On Trailer)
Service Reservoir Port 1
1/4-18 NPT
Service Reservoir Port 2
1/4-18 NPT
Trailer Service Port
1/4-18 NPT
Trailer Supply Port
1/4-18 NPT
Height
140.7 mm (5.54 in)
Length
154.7 mm (6.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Spring Brake Reservoir Supply Port
3/4-14 NPT (without Check Valve)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Opening Pressure
65 PSI
Width
76.2 mm (3.0 in)
Harmonized System (HS) Code
848120
Regulatory Compliance
ADR 38
Exhaust Port
Dust Shield
Country of Origin
Mexico
Thread Sealant
No Sealant
Brake Charging Priority
Service Brake Priority
Anti-Compounding
Yes
Weight
3.13 lb
