$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

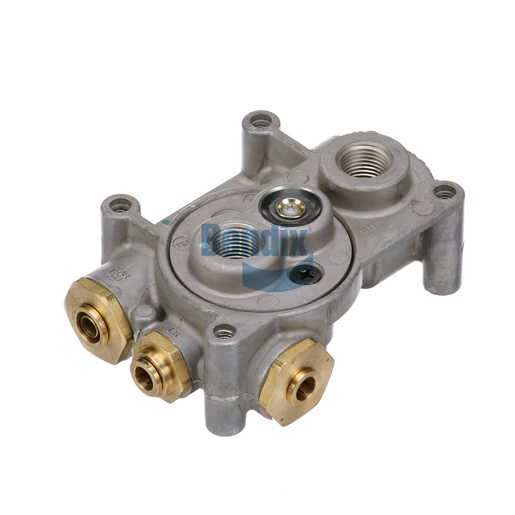

The Bendix Tractor Protection Valve is an essential component that enhances your vehicle's air brake system, ensuring safe and reliable operation. This valve is designed to prevent air loss in case of a trailer disconnect, safeguarding the integrity of the braking system. Weighing 1.2 kg, it features a robust design for durability, ensuring it can withstand the rigors of commercial use. Manufactured in Mexico, this valve complies with high-quality standards, ensuring reliable performance over its lifespan. Its easy installation makes it a practical choice for fleet operators looking to maintain their vehicles efficiently. When you opt for genuine Bendix OEM parts, you are prioritizing safety and performance. Source One Parts Center is the best place to purchase authentic Bendix parts, helping to keep your trucks in optimal condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Tractor Control Port (Secondary)
1/2 PTC
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.2 mm (4.22 in)
Length
146.6 mm (5.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Stop Light Switch Port
3/8 PTC
Tractor Protection Port
3/8 PTC
Trailer Control Port
3/8 PTC
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.71 lb
