103176

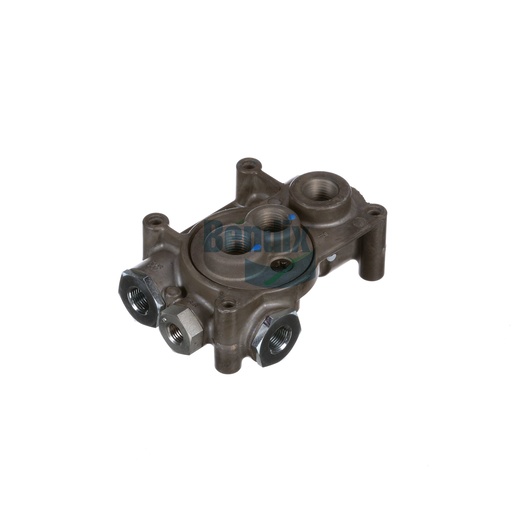

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Tractor Protection Valve plays a crucial role in the safety and efficiency of your commercial vehicle's braking system. Designed to prevent trailer runaway in the event of a tractor-trailer separation, this component ensures that the trailer brakes are automatically applied when the connection is lost. Featuring a robust design, it operates effectively within a wide temperature range from -40°F to 200°F, making it suitable for various climates and conditions. The valve's ports are expertly engineered for optimal air flow, including a service line shut-off pressure of 10 PSI and a maximum service line opening pressure of 50 PSI, ensuring reliable performance. With a lightweight construction of just over 2 pounds, installation is straightforward, making it an ideal choice for fleet maintenance or individual truck owners looking to enhance safety. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, guaranteeing you receive high-quality components that meet strict manufacturing standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4-18 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.7 mm (4.24 in)
Length
144.3 mm (5.68 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT
Trailer Control Port
3/8-18 NPT
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Service Line Opening Pressure
50 PSI (MAX)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.36 lb
