104283N

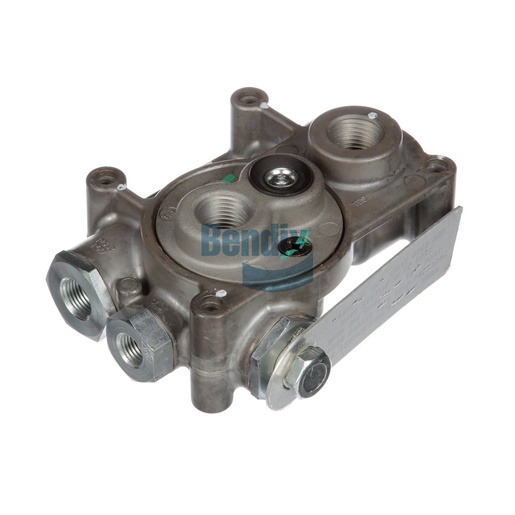

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Tractor Protection Valve is an essential safety component in your vehicle's braking system, designed to protect the tractor and trailer during braking operations. Weighing 1.1 kg, this valve ensures that air pressure is efficiently managed, preventing accidental trailer disconnects and maintaining optimal brake functionality. Its robust design is engineered to withstand the rigors of heavy-duty use, ensuring reliability and durability. Installing this valve can significantly enhance the safety and performance of your truck, making it a vital component for any fleet. For all your Bendix OEM part needs, Source One Parts Center is your trusted partner, dedicated to delivering quality components that keep your fleet operating smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4-18 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
117.1 mm (4.61 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT
Trailer Control Port
3/8-18 NPT (Plugged)
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.45 lb
