106249N

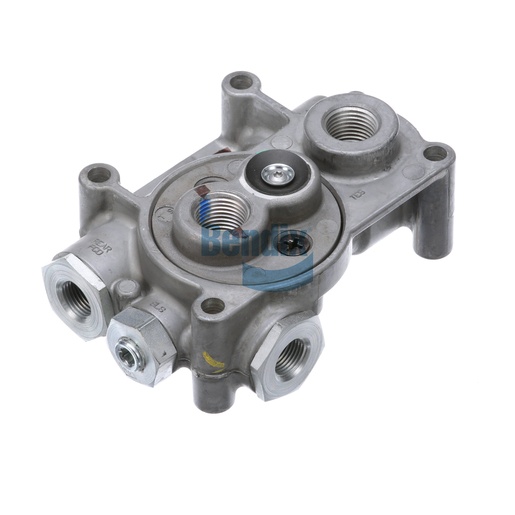

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Tractor Protection Valve is a key component in the air brake system, specifically designed to enhance vehicle safety and performance. This valve, weighing 1.1 kg, is crafted in Mexico and engineered to provide reliable performance under various operating conditions. Its design facilitates effective air management, ensuring that the trailer brakes are activated when necessary, preventing runaway situations. The valve's durability and robust construction make it a dependable choice for commercial vehicles. For those seeking quality and reliability in brake system components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Stop Light Switch Port
1/4-18 NPT (Plugged)
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.7 mm (4.24 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT
Trailer Control Port
3/8-18 NPT
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.36 lb
