107430

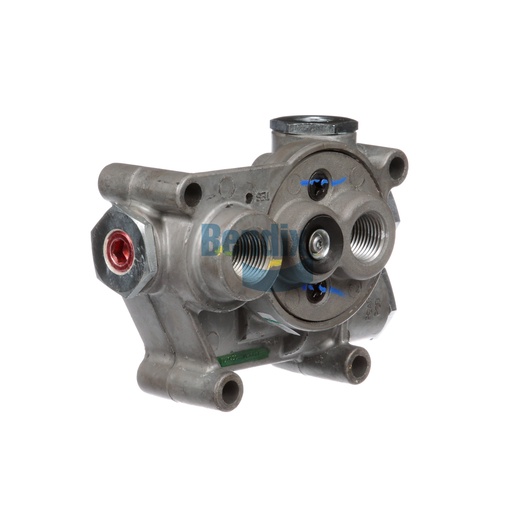

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Tractor Protection Valve is a critical safety component that plays a vital role in the braking system of commercial vehicles. This valve is designed to prevent air loss in case of a disconnect between the tractor and the trailer, ensuring that the brakes remain engaged and operational, even during emergencies. With features that include multiple ports for easy connections, this valve is engineered for durability and reliable performance, even in harsh conditions. The maximum operating temperature of 200 °F ensures it can withstand the demands of heavy-duty use. When it comes to genuine Bendix OEM parts, Source One Parts Center is your best choice, offering quality products and knowledgeable customer support.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Tractor Protection Port (Firewall)
1/4-18 NPT
Trailer Control Port
1/4-18 NPT
Stop Light Switch Port
1/4-18 NPT (Plugged)
Stop Light Switch Port (Firewall)
1/8-27 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
106.2 mm (4.18 in)
Length
144.8 mm (5.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Tractor Control Port (Primary)
3/8-18 NPT
Tractor Control Port (Secondary)
3/8-18 NPT
Tractor Protection Port
3/8-18 NPT (Plugged)
Service Line Opening Pressure
50 PSI (MAX)
Height
69.9 mm (2.75 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Type
Firewall
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.49 lb
