800028

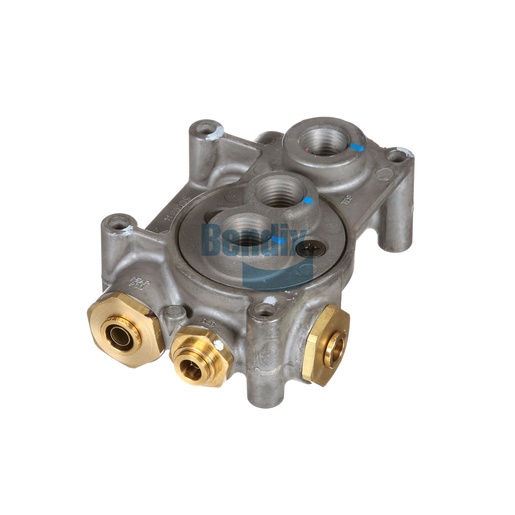

Tractor Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Tractor Protection Valve is a vital safety feature in the Bendix air brake system, designed to prevent air loss from the trailer in case of disconnection. This component ensures that your braking system remains operational, enhancing safety for both the driver and other road users. Its robust construction and reliable operation make it essential for maintaining the integrity of your braking system under various conditions. By investing in a genuine tractor protection valve, you ensure that your vehicle is equipped with the best safety features available. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive high-quality components for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Tractor Control Port (Secondary)
1/2 PTC
Exhaust Port
1/2-14 NPT
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.2 mm (4.22 in)
Length
146.6 mm (5.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Stop Light Switch Port
3/8 PTC
Tractor Protection Port
3/8 PTC
Trailer Control Port
3/8 PTC
Mounting
5/16-18 UNC-2B with .62 MIN full thread (8x)
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Weight
2.65 lb
