$449.95
$539.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

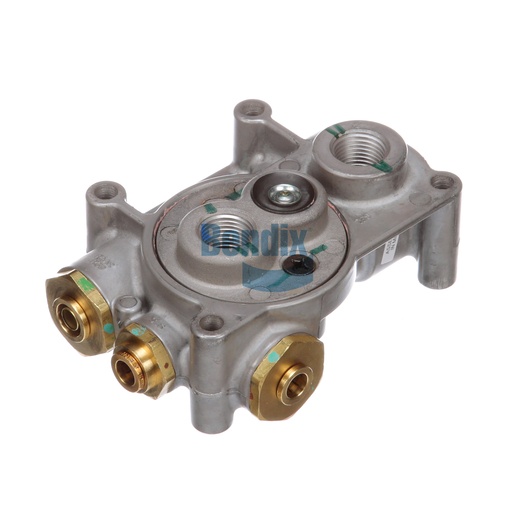

The Bendix Tractor Protection Valve is an essential safety feature in your vehicle's air brake system, designed to prevent air loss from the trailer when the tractor is disconnected. This valve is engineered to ensure reliable operation under a variety of conditions, protecting the integrity of the air brake system and enhancing vehicle safety. Its robust construction ensures durability, while the straightforward installation process minimizes downtime for fleet operators. By regulating air pressure effectively, this valve plays a crucial role in maintaining optimal braking performance. For those seeking quality replacements, Source One Parts Center is the best place for genuine Bendix OEM parts, providing peace of mind and reliability for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-016: Tractor Protection Control Valve
Tractor Control Port (Primary)
1/2 PTC
Tractor Control Port (Secondary)
1/2 PTC
Trailer Service Port
1/2-14 NPT
Trailer Supply Port
1/2-14 NPT
Service Line Shut-Off Pressure
10 PSI (MIN)
Width
107.2 mm (4.22 in)
Length
146.6 mm (5.77 in)
Maximum Operating Temperature
200 °F (93 °C)
Stop Light Switch Port
3/8 PTC
Tractor Protection Port
3/8 PTC
Trailer Control Port
3/8 PTC
Height
58.9 mm (2.32 in)
Harmonized System (HS) Code
848120
Mounting Type
Cab / Chassis
Exhaust Port
Dust Shield
Country of Origin
Mexico
Trailer Service Quick Release
Yes
Vent
Yes
Mounting
Ø .34 IN (4x)
Weight
2.62 lb
