102144R

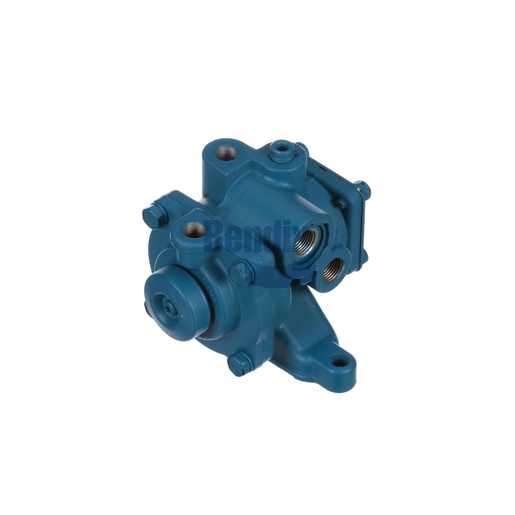

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve is engineered to provide reliable control over the spring brake systems in commercial vehicles. This valve features an anti-compounding design, ensuring that the spring brakes engage smoothly while preventing unintended activation during operation. With a robust construction designed to withstand a temperature range of -40°F to 200°F, this valve is built for resilience and reliability in demanding environments. It features multiple ports for efficient airflow management, facilitating optimal performance of the braking system. This valve is essential for maintaining safety and control, especially in emergency braking situations. Choose Source One Parts Center for your Bendix OEM parts needs, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.56 lb
