5004943N

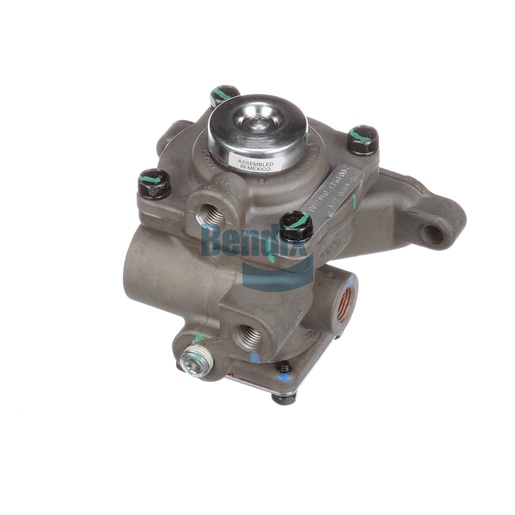

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake Valve is an essential component in the air brake system of commercial vehicles, designed to control the application and release of spring brakes. This valve ensures that the braking system functions correctly, enhancing safety and performance. With multiple ports for supply, exhaust, and control, it allows for precise management of brake pressure. Its robust design includes features that ensure durability and reliability, even in harsh operating conditions. The valve operates efficiently within a temperature range of -40°F to 200°F, making it suitable for various climates. For those looking for genuine Bendix parts, Source One Parts Center is the best source, providing authentic components that meet high standards of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Harmonized System (HS) Code
848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Up
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
2.56 lb
