801120

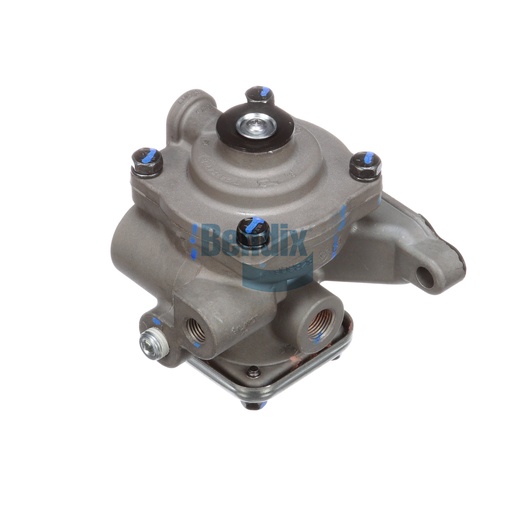

Spring Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake Valve from Bendix is a crucial component designed to enhance the performance of tractor spring brake systems. This valve features a robust construction that ensures reliable operation under various conditions, with a maximum operating temperature of 200 °F and a minimum operating temperature of -40 °F. It is engineered with multiple ports for flexibility in installation, allowing for seamless integration within your braking system. Designed with anti-compounding features, this valve provides enhanced safety and responsiveness, which is essential for effective braking performance. Weighing approximately 3.0 pounds, it is lightweight yet durable, making it suitable for heavy-duty applications. When it comes to reliability and performance, Source One Parts Center stands out as the best choice for purchasing genuine Bendix OEM parts, ensuring you receive components of the highest quality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-496: Valve - Modulating, Spring Brake
Balance Port
1/4-18 NPT
Control Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 2
3/8-18 NPT
Supply Port
3/8-18 NPT
Delivery Port 1
3/8-18 NPT (Plugged)
Harmonized System (HS) Code
848110,848120
Spring Brake Hold-Off Pressure
95 PSI
Exhaust Port
Dust Shield
Exhaust Orientation
Exhaust Facing Down
Regulatory Compliance
FMVSS 121
Country of Origin
United States, Mexico
Anti-Compounding
Yes
Mounting
Ø .41 IN (2x)
Weight
3 lb
